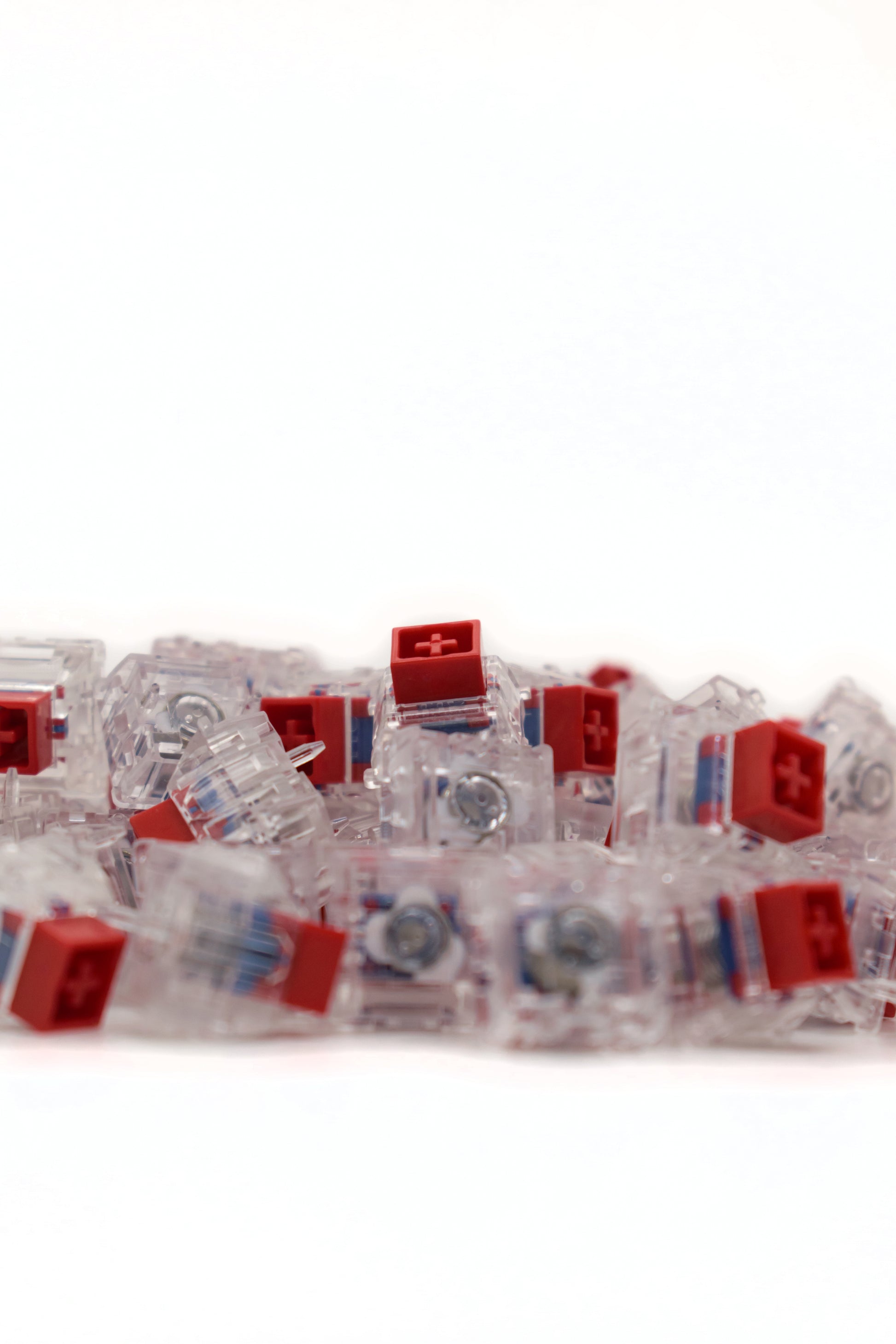

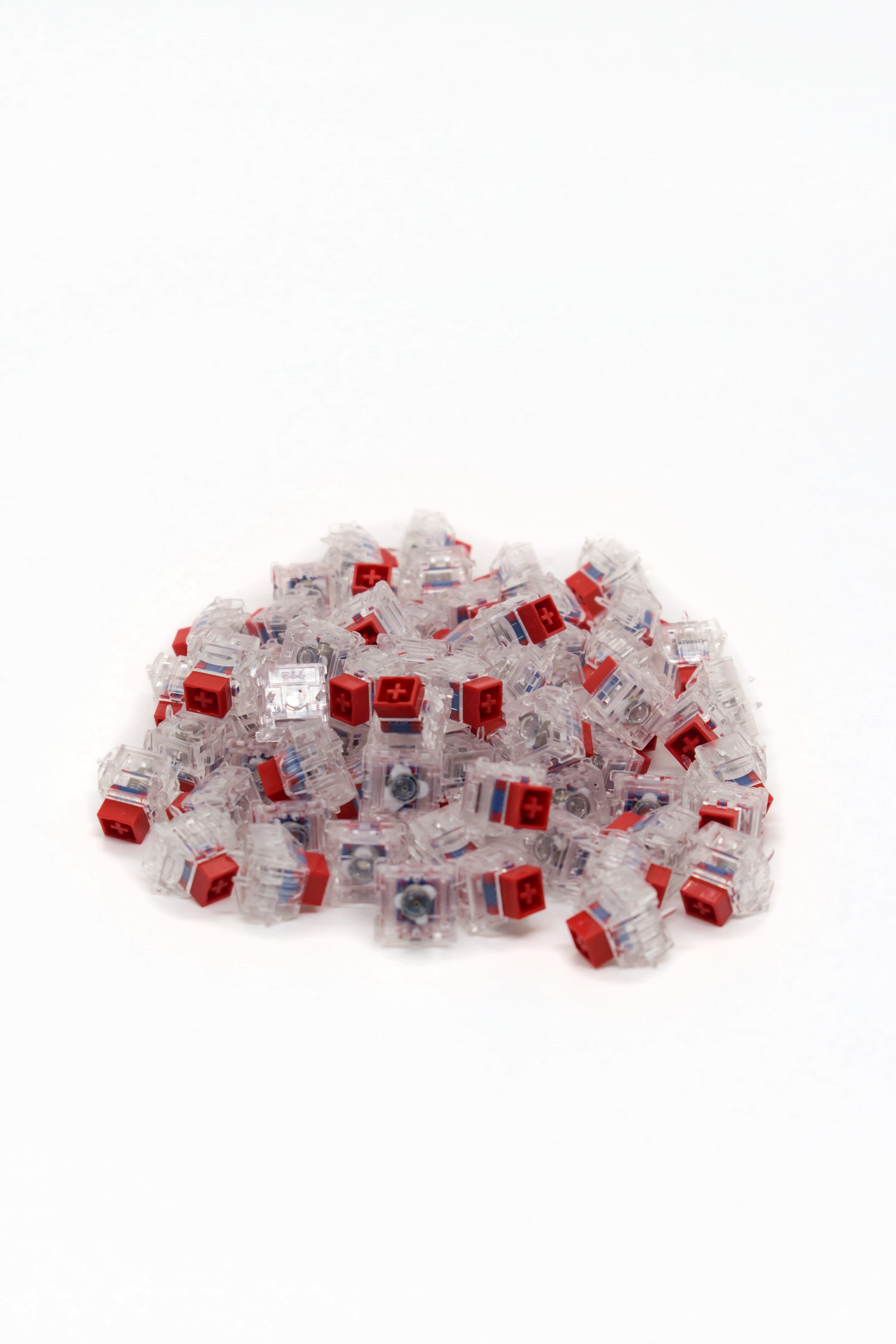

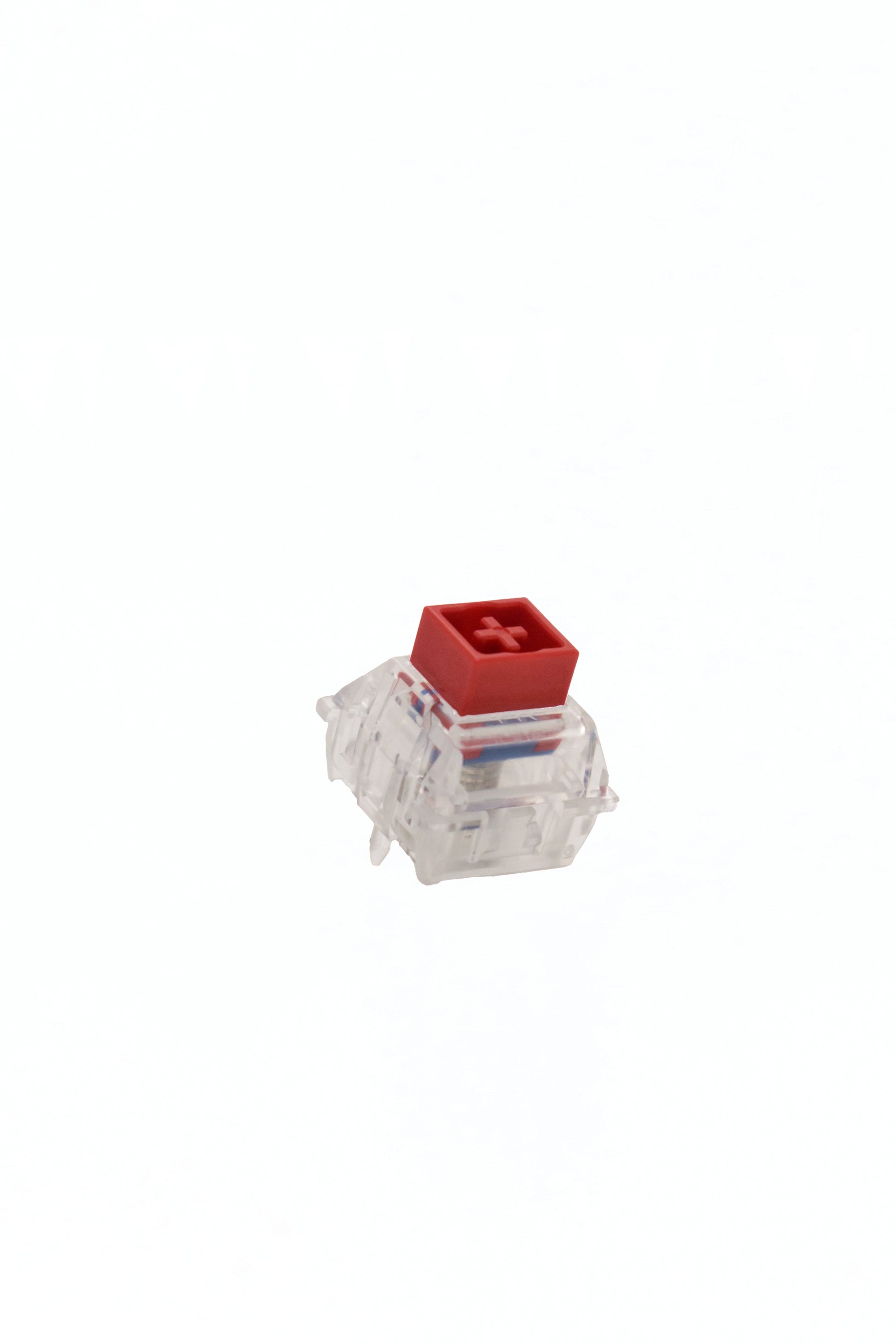

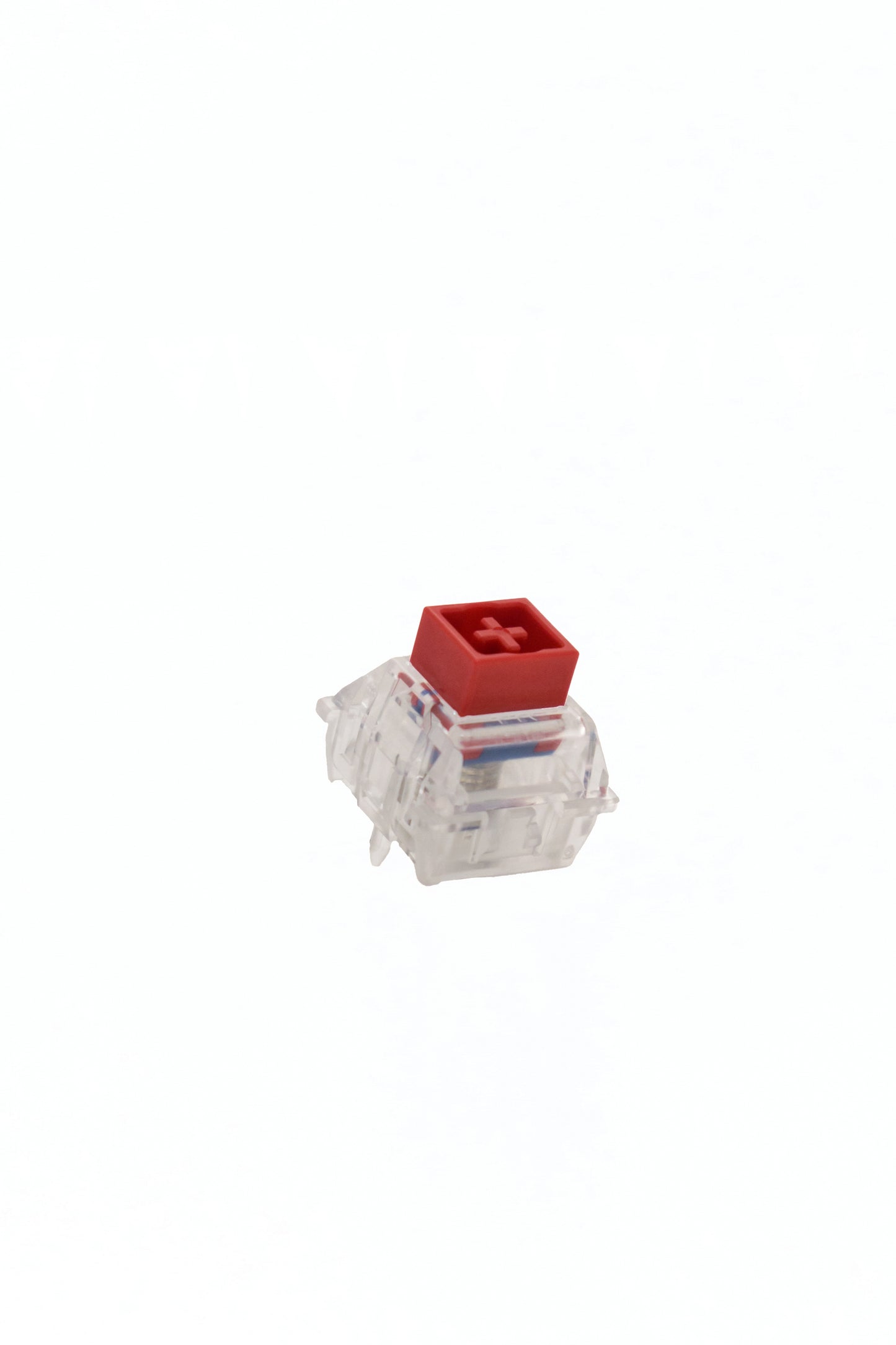

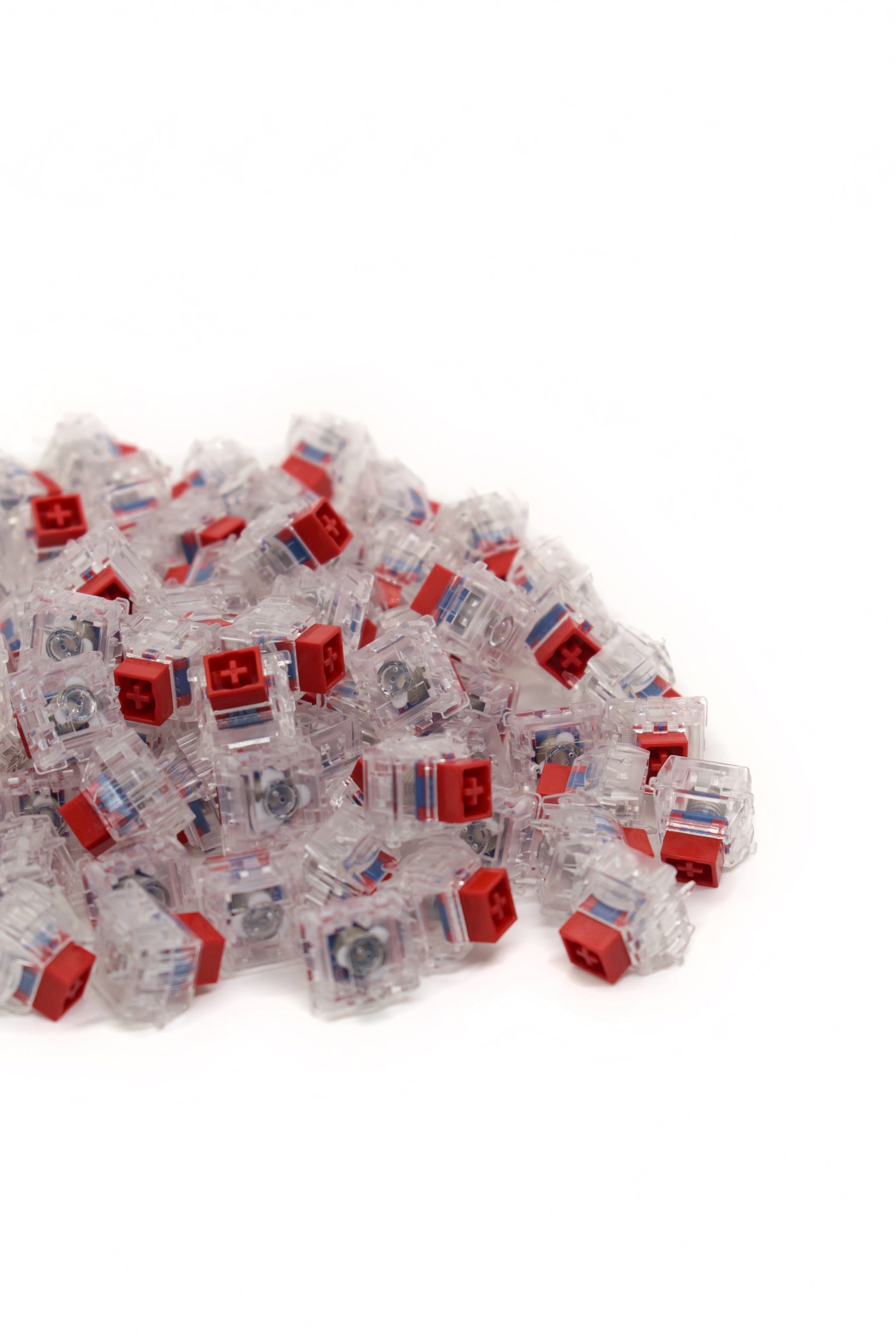

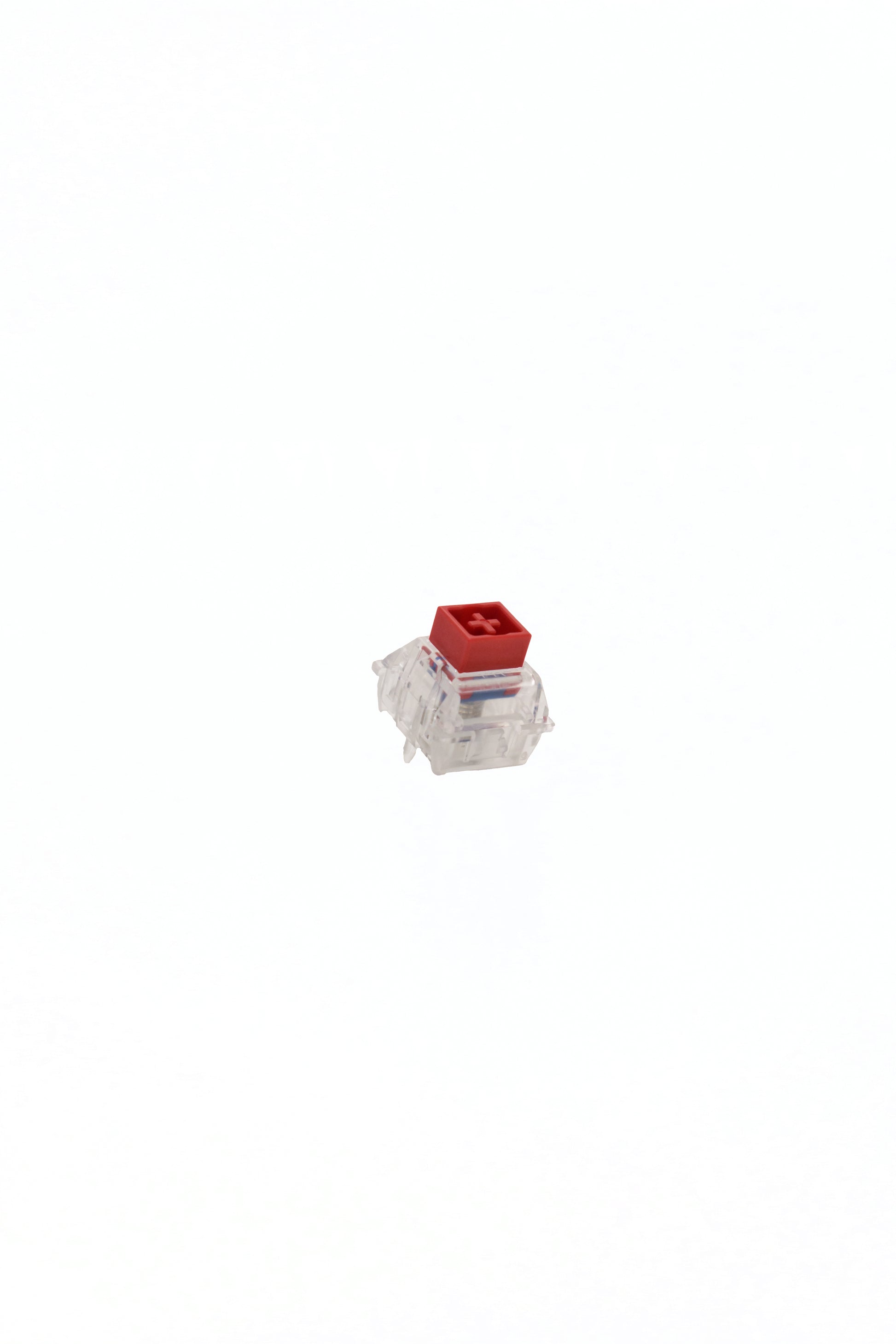

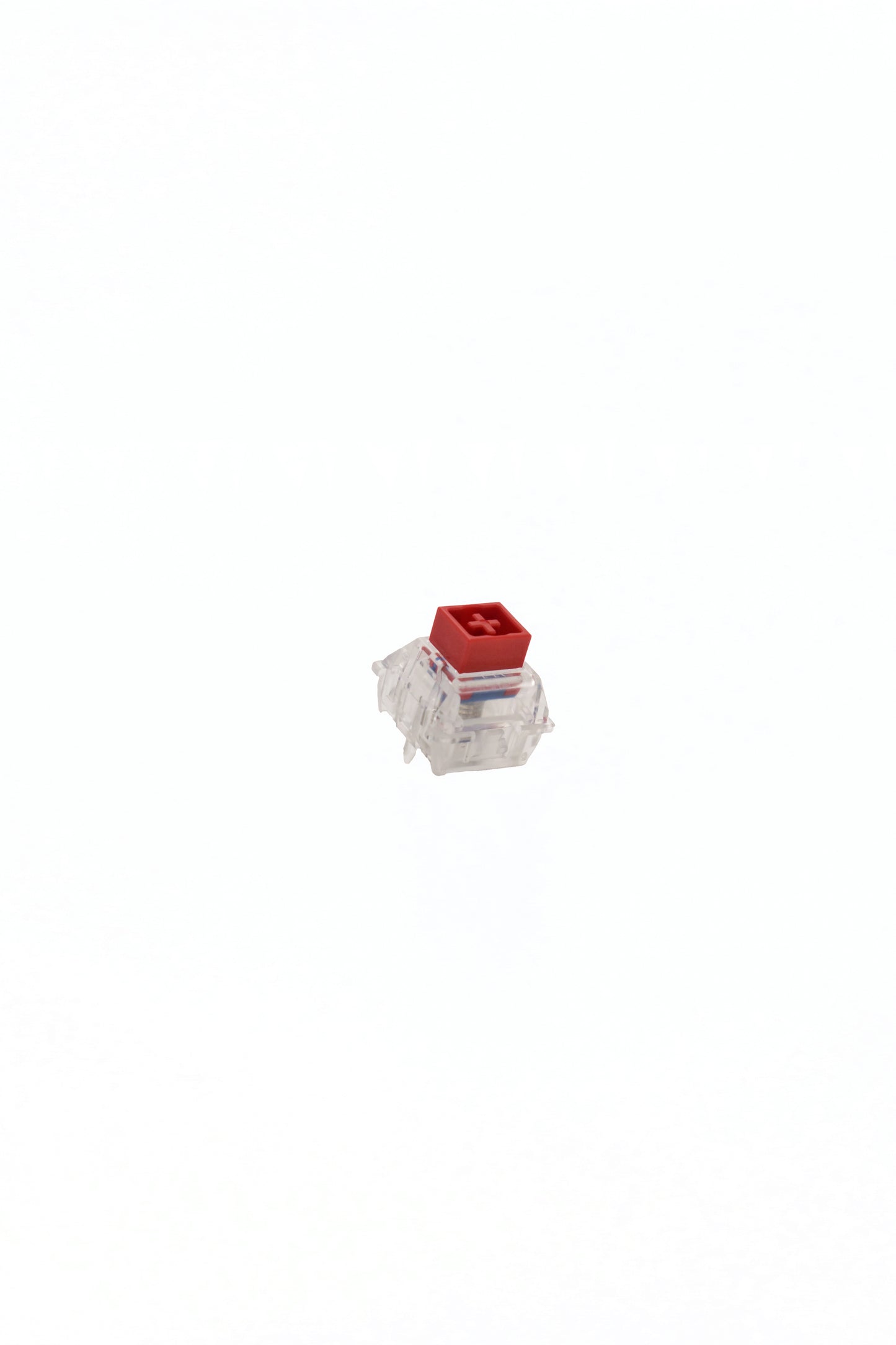

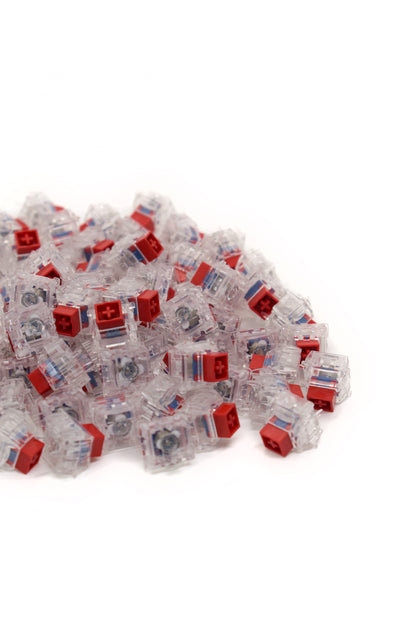

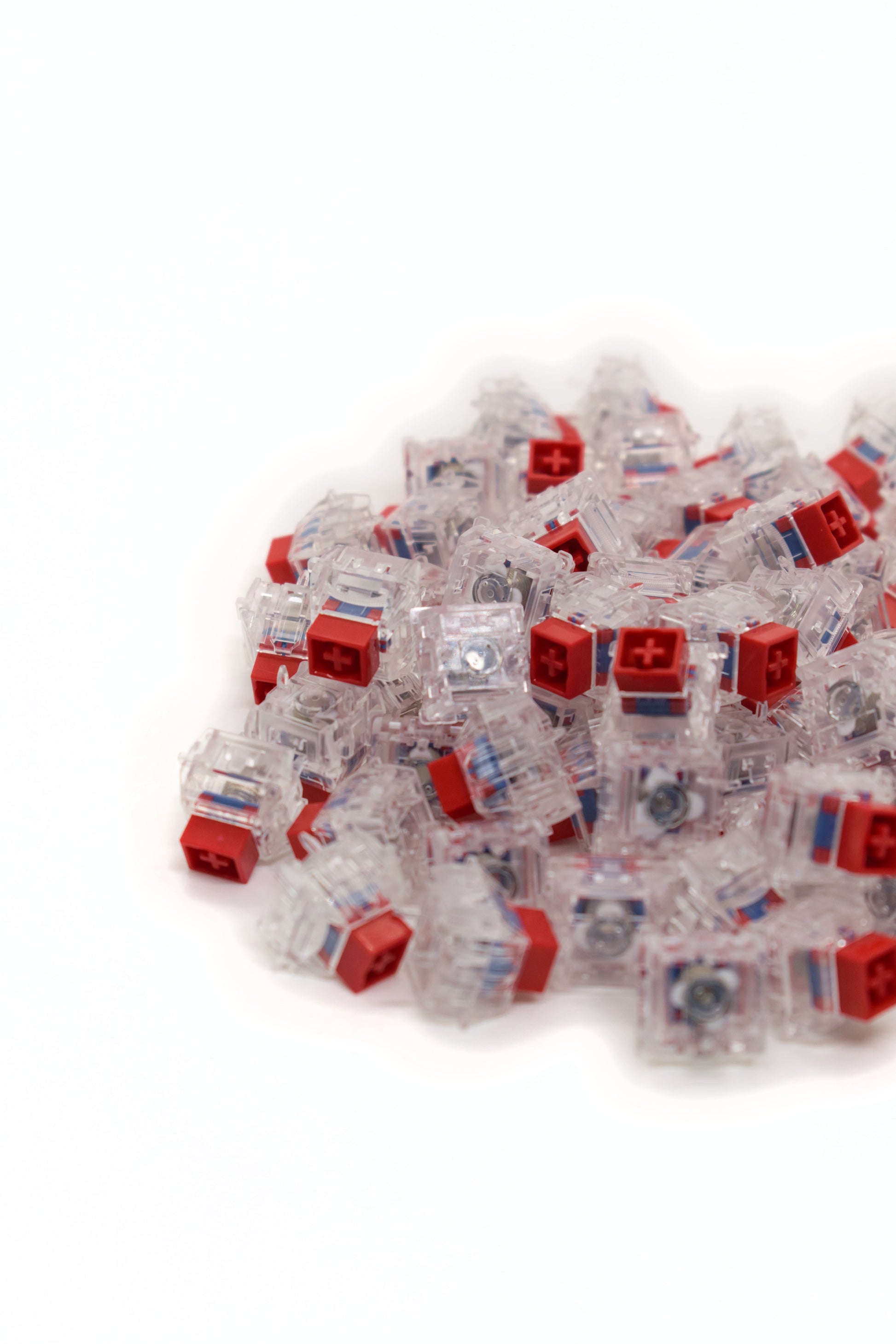

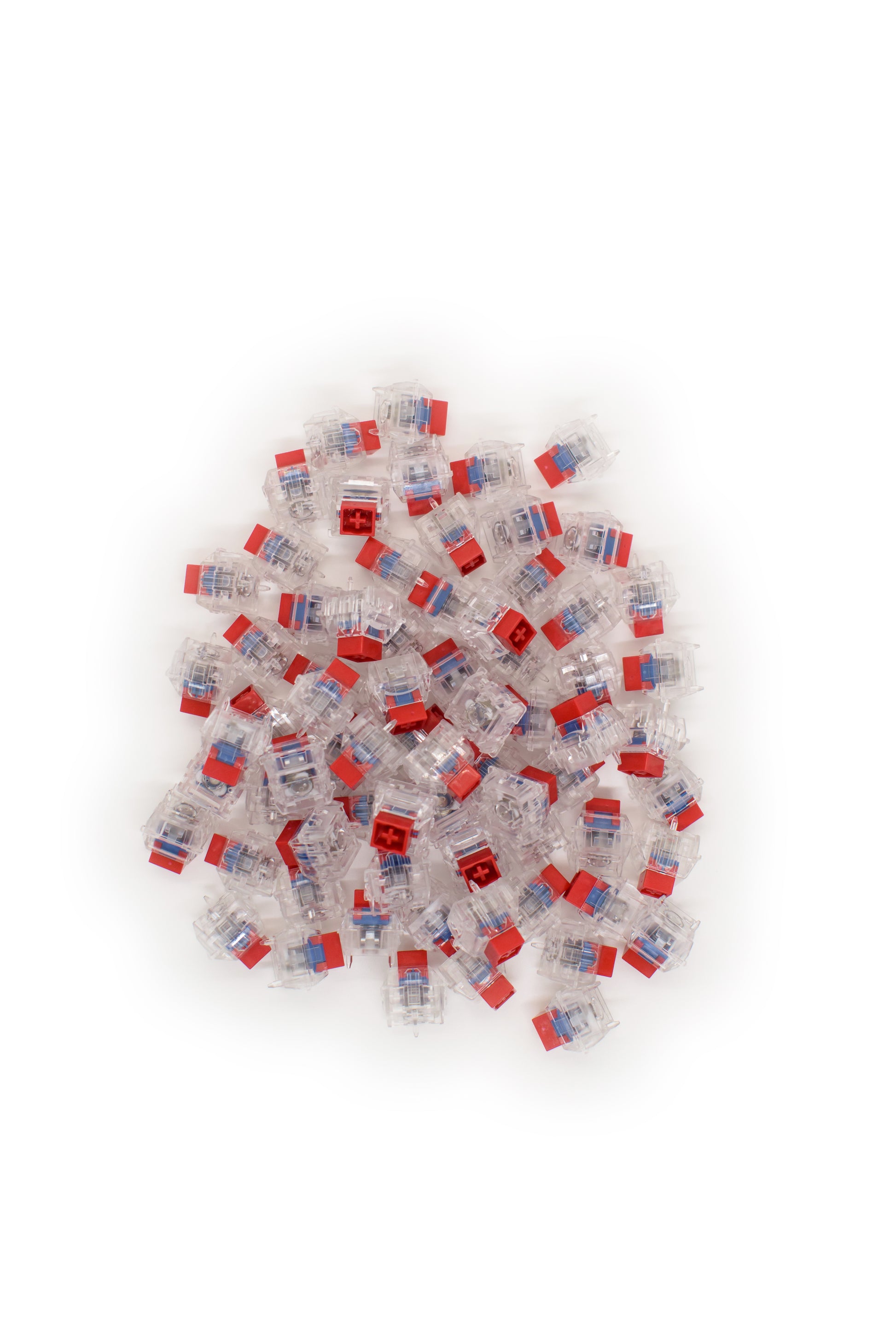

TTC Magneto KOM Magnetic Keyboard Switches (70 pcs)

TTC MagnetoTTC KOM Magnetic HE

TTC MagnetoTTC KOM Magnetic HE are linear magnetic (Hall Effect) mechanical switches designed for users who want extremely smooth key travel with adjustable actuation point. Thanks to their magnetic mechanism, the switch reduces physical contact between components, potentially providing a completely consistent feel and greater durability over time. This model is an excellent choice for gamers and intensive typists looking for a stable and dust-proof switch with customization options, but it may not be ideal for fans of tactile or clicky feedback.

Feel and Sound

• Silky Smooth Travel: The switch offers extremely fine linear movement without a tactile "bump" or audible click.

• Consistently Fluid Movement: Magnetic actuation contributes to a perfectly even and smooth key press.

• Note on Acoustics: Specific details about the sound profile are not fully specified, but generally, this type of linear switch produces a quieter and softer sound with minimal thock or clack effect.

Actuation and Characteristics

• Light and Pleasant Start: The initial actuation force is light to moderate – around 35gf, which perfectly balances fast key response and reduced finger fatigue.

• Customizable Actuation Point: Users can set the actuation point (trigger point) themselves, choosing exactly when a command is registered during a press. This feature allows for complete adaptation to personal preferences for gaming or typing.

• Standard Depth: The total travel of the switch is completely standard – 3.5mm.

Build Quality and Design

• Disassemblable Split-Structure: Features an innovative two-part split structure design with replaceable top and bottom components, allowing for further customization of feel or appearance.

• Dust-Proof Housing: The special housing design protects internal elements from dust and fine particles, significantly improving stability, extending switch life, and maintaining smooth travel.

• Impressive Backlighting: The built-in light guide column ensures completely consistent, even, and bright diffusion of RGB lighting.

What to Consider (Possible Compromises)

• While magnetic technology reduces mechanical wear, it changes the press feel, which may seem a bit unusual to users accustomed to traditional switches with classic metal springs.

• As an entirely linear model, the switch lacks tactile feedback, which may be a drawback for people who prefer a more distinct physical sensation when actuating a key.


RGB TTC Magneto Switch
Linear Switch
Initial force 35±5gf
Total travel 3.4±0.2mm
Initial magnetic flux 100±15Gs (on 1.2mm PCB) ¦ 90±15Gs (on 1.6mm PCB)
Final magnetic flux 640±60Gs (on 1.2mm PCB) ¦ 480±60Gs (on 1.6mm PCB)
Electrical Life: 100 million keystrokes
Pre-travel Custom defined

These switches are NOT compatible with traditional mechanical keyboards!
